In Stock!
Lead Times May Vary.
*Reservoir Not Included but is Required. Reservoirs can be found in the Related Products Section at the bottom of this page.
Description

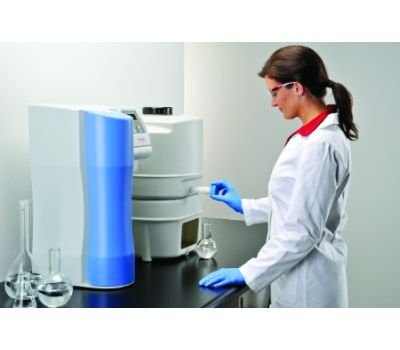

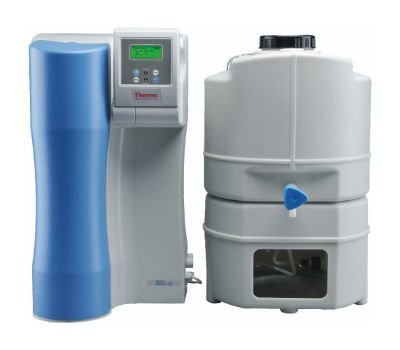

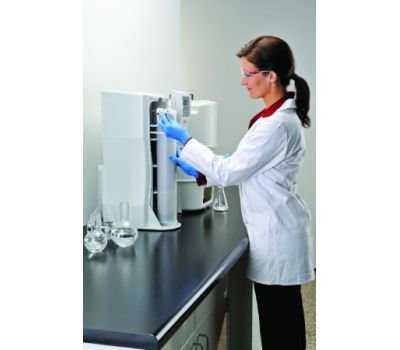

Transform ordinary tap water into high-purity Type 2 water with the Thermo Scientific™ Barnstead™ Pacific™ TII water purification system. Engineered for efficiency and reliability, this system meets daily supply needs from 20 to 200 liters. The advanced reverse osmosis technology eliminates approximately 98% of inorganic ions, 99% of dissolved organic substances, as well as microorganisms and particulates, ensuring the highest quality of water.
Versatile Options for Your Purification Needs
- • Choose from five system options with varying permeate flows of 3, 7, 12, 20, or 40L/hr.
- • Upgradable systems designed to accommodate increasing water demands effortlessly.
- • Space-efficient design allows for versatile setup – install on a benchtop or mount it on a wall with the integrated bracket.
Unmatched Operational Reliability
- • Microprocessor control enables automatic operation and constant monitoring of critical parameters.
- • Automatic return to "operating" mode facilitates recirculation during idle periods for optimal efficiency.
- • Optional UV lamp available to prevent biological contamination, ensuring purity.
User-Friendly Interface
- • Easily read resistivity/conductivity levels on a large, back-lit control panel that tilts for enhanced visibility.
- • Clear status indicators for operating modes: "production," "stand-by," and "cleaning."
- • Intuitive display of reservoir fill level as a percentage.
- • Code-protected system parameters safeguard against accidental adjustments.
GLP-Compliant Documentation
- • Optional printer connects via RS-232 port for data recording and traceability.
- • Maintains a cell constant of 0.01cm-1 for precise conductivity readings.
- • Temperature compensation for conductivity measurements boasts an accuracy of ±0.1°C (in accordance with USP 645).
Optional Hand Dispenser
- • Enhance flexibility with an optional hand dispenser featuring a 3-meter cord, designed for connection to a tank (requires a pressure pump tank).
- • Ships complete with a 0.2 micron final filter (Part #50138221).
| Full Specifications |
Pacific TII 7 |
Pacific TII 12 |
Pacific TII 20 |
| Permeate performance |
7L/hr. at 10°C |
12L/hr. at 10°C |
20L/hr. at 10°C |
| Resistivity |
15 to 10MΩ x cm at 25°C |
| Conductivity |
0.067 to 0.1µS/cm |
| Feedwater Source |
Tap |
| Total Organic Carbon |
<30ppb |
| Bacterial Content |
99% |
| Particles >0.2µM/mL |
<1 µM/mL |
| TOC Monitor with UV Intensity Monitoring |
No |
| Feed Water Monitoring |
No |
| Feedwater Connector |
3/4 in. NPT |
| Feedwater Pressure |
1-6 Bar |
| Height |
613mm |
| Width |
372mm |
| Net Weight |
25kg |
| Operating Pressure |
2 to 6 bar |
| Temperature Range |
2° to 35°C |
| Bacterial retention |
99% |
| Depth |
330mm |
| Electrical Requirements |
90 to 240V 50/60Hz |
