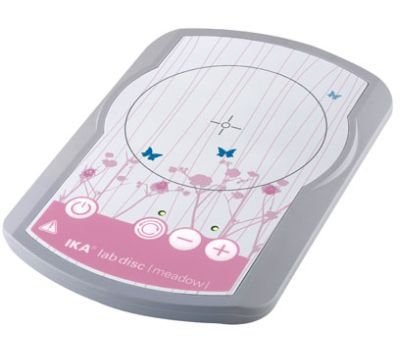

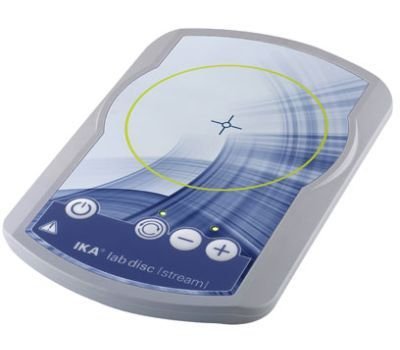

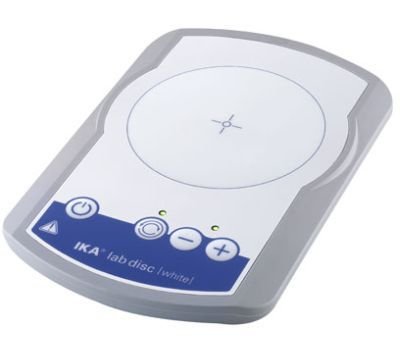

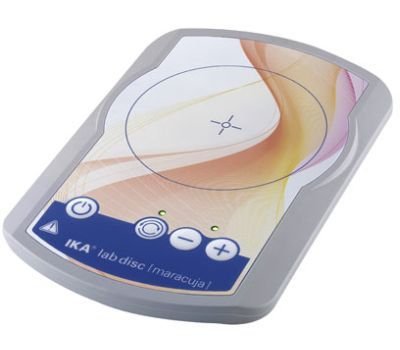

Lab Disc IKAMAG Magnetic Stirrer
Experience unparalleled mixing efficiency with the ultra-flat Lab Disc IKAMAG Magnetic Stirrer. Engineered with cutting-edge magnet coil technology, this compact stirrer boasts a wear-free drive featuring no moving parts. Enhance your laboratory operations with its automatic reverse rotation feature, which ensures superior mixing by changing direction every 30 seconds.
Key Features
- • High IP protection class (IP 65) for reliable performance in various laboratory environments.
- • Set-up plate and casing crafted from chemically resistant materials, ensuring durability and longevity.
- • Slip-proof, safe stand design enhances stability during operation.
Specifications
| Number of stirring positions |
1 |
| Stirring quantity max. (H2O) |
0.8 l |
| Motor rating input |
5 W |
| Motor rating output |
3 W |
| Speed range |
15 - 1500 rpm |
| Stirring bar length max. |
25 mm |
| Set-up plate material |
Polyester |
| Set-up plate dimensions |
Ø 100 mm |
| Dimensions (W x H x D) |
117 x 12 x 180 mm |
| Weight |
0.3 kg |
| Permissible ambient temperature |
5 - 40°C |
| Permissible relative humidity |
80% |
| Protection class according to DIN EN 60529 |
IP 65 |
| Voltage |
120 V |
| Frequency |
50/60 Hz |
| Power input |
5 W |
