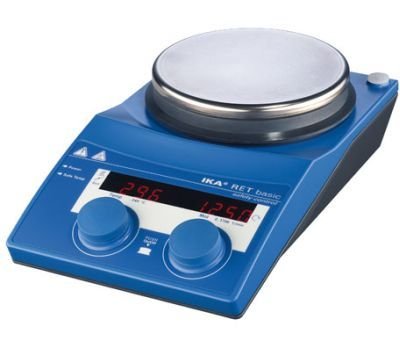

RET Basic IKAMAG Safety Control Magnetic Stirrers
Experience precision and safety with the latest iteration of our renowned magnetic stirrer, now enhanced with a sleek design and advanced features tailored for today’s laboratory needs. Enjoy peace of mind with innovative functions, ensuring consistent results and user safety.
Key Features
- • Wide Speed Range: 0/50 - 1700 rpm for diverse mixing applications.
- • Integrated Temperature Control: Maintain precise thermal conditions throughout experiments.
- • Included PT 1000 Temperature Sensor: For accurate temperature readings and superior control (model: PT 1000.60).
- • Digital Display: Shows exact temperature and speed settings, even when off.
- • Safety Temperature Limit: Set and monitor safety temperature limits displayed digitally.
- • Hot Top Indicator: An essential feature that warns of hot surfaces to prevent burns.
- • Digital Error Code Display: Quickly diagnose issues with our intuitive error reporting system.
Specifications
| Number of Stirring Positions |
1 |
| Max Stirring Quantity (H2O) |
20 l |
| Speed Deviation |
5% |
| Motor Rating Input |
16 W |
| Motor Rating Output |
9 W |
| Speed Display |
LED |
| Heating Output |
600 W |
| Heating Rate (1 l H2O in H15) |
7 K/min |
| Heating Temperature Range |
Room Temp. - 340 °C |
| Heat Control Accuracy |
1 ±K |
| Set-up Plate Material |
Stainless Steel 1.4301 |
| Set-up Plate Dimensions |
Ø 135 mm |
| Dimensions (W x H x D) |
160 x 95 x 270 mm |
| Weight |
2.5 kg |
| Permissible Ambient Temperature |
5 - 40 °C |
| Permissible Relative Humidity |
80% |
| Protection Class |
IP 42 |
| Voltage |
220 - 230 / 115 / 100 V |
| Frequency |
50/60 Hz |
| Power Input |
630 W |
Enhanced Safety Features
- • Adjustable safety circuit for heating plate temperature (50 - 380 °C) ensures user safety during extended operations.
- • High magnetic adhesion provides stability during stirring, suitable for unsupervised operations.
- • Bushing according to DIN 12878 allows for connecting external contact thermometers for enhanced temperature monitoring.
- • Enclosed assembly design promotes longevity and durability in rigorous laboratory environments.
