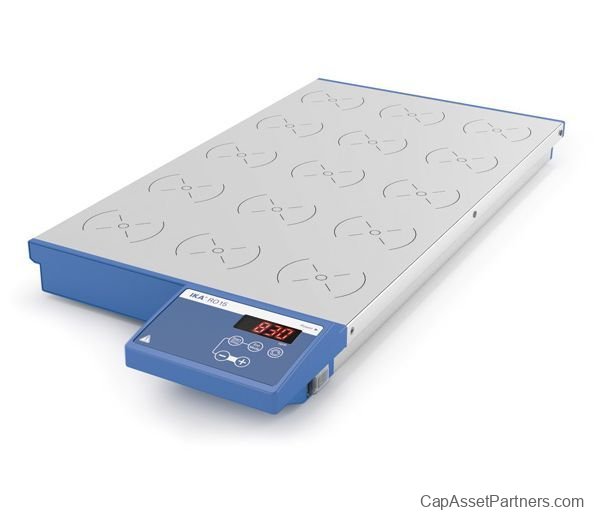

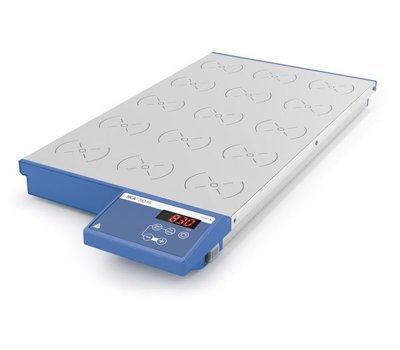

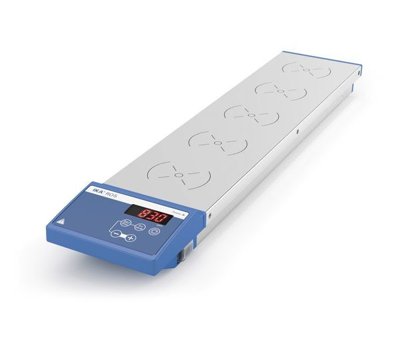

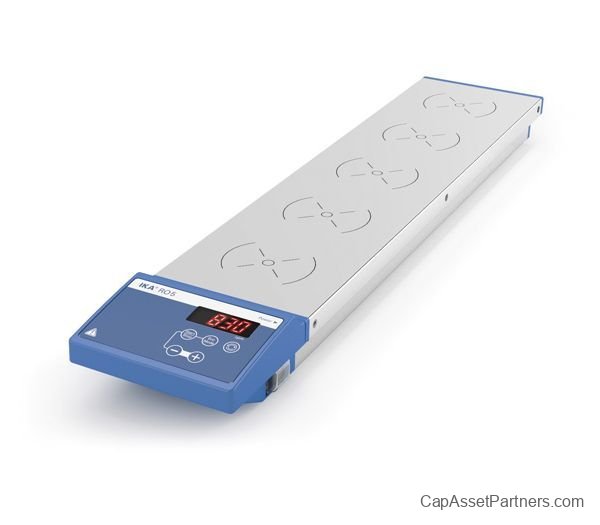

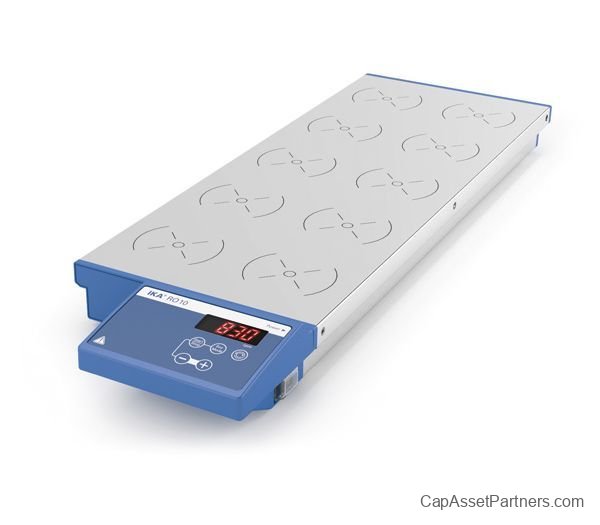

RO Multi-Position Digital Magnetic Stirrers
Introducing the cutting-edge 5/10/15-position digital magnetic stirrer, engineered for efficient and synchronous stirring across all positions. Utilizing advanced magnetic coil technology, it guarantees noiseless operation while maintaining a constant stirring speed, even with varying loads. Its innovative closed and compact design not only simplifies cleaning but also protects the equipment from liquid infiltration. Each unit comes with a removable transparent anti-slip mat, enhancing stability during use.
Key Features
- Adjustable reverse operation for customized mixing
- Wear-free magnetic coils ensure longevity and reliability
- Error code display for immediate feedback
- User-friendly touch keypad for intuitive operation
- Designed for continuous operation, ideal for busy labs
- Speed easily adjustable in increments of 10 rpm
Specifications
| Specifications |
RO 5 |
RO 10 |
RO 15 |
| Number of stirring positions |
5 |
10 |
15 |
| Max stirring quantity per position (H2O) |
0.4 liters |
| Stirring position distance |
90 mm |
| Speed deviation of individual positions |
0% |
| Max total stirring quantity (H2O) |
2 l |
4 l |
6 l |
| Speed display |
LED line |
| Speed range |
0 - 1200 rpm |
| Max stirring bar length |
30 mm |
| Speed control |
10 RPM Steps |
| Set-up plate material |
Stainless steel 1.4301 |
| Set-up plate dimensions |
120 x 470 mm |
190 x 470 mm |
280 x 470 mm |
| Dimensions (W x H x D) |
120 x 60 x 570 mm |
190 x 60 x 570 mm |
280 x 60 x 570 mm |
| Weight |
3 kg |
5 kg |
7 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative humidity |
80% |
| Protection class |
IP 40 |
| Voltage |
100 - 240 V |
| Frequency |
50/60 Hz |
| Power input |
13 W |
25 W |
40 W |
| DC Voltage |
24 V= |
| Current consumption |
500 mA |
1000 mA |
1500 mA |
