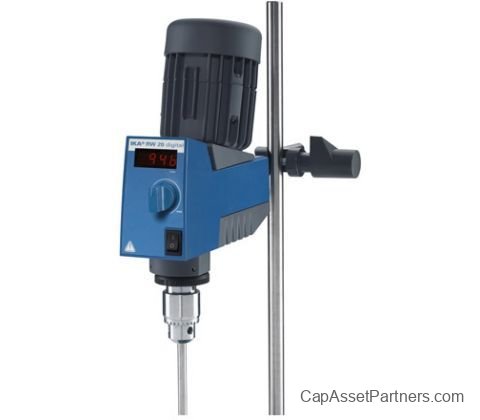

RW 20 Digital Overhead Stirrer
Revolutionize Your Laboratory with Cutting-Edge Technology
- • Incorporates a new digital display for precise monitoring
- • Robust, slimline, ergonomic design ensures ease of use
- • Enhanced technical specifications based on the trusted RW 20 series
- • Features a constant power-drive for reliability
- • Wide speed ranges from 60 to 2,000 rpm for versatile applications
- • Push-through agitator shafts for convenience (stationary use only)
| Stirring Quantity Max (H2O) |
20 l |
| Motor Rating Input |
70 W |
| Motor Rating Output |
35 W |
| Speed Display |
LED |
| Speed Range |
60 - 2000 rpm |
| Max Viscosity |
10000 mPas |
| Output Max at Stirring Shaft |
26 W |
| Permissible ON Time |
100% |
| Max Torque at Stirring Shaft |
150 Ncm |
| Max Torque at Stirring Shaft at 60 1/min (Overload) |
300 Ncm |
| Max Torque at Stirring Shaft at 100 1/min |
150 Ncm |
| Max Torque at Stirring Shaft at 1000 1/min |
24 Ncm |
| Speed Range I (50 Hz) |
60 - 500 rpm |
| Speed Range II (50 Hz) |
240 - 2000 rpm |
| Speed Range I (60 Hz) |
72 - 600 rpm |
| Speed Range II (60 Hz) |
288 - 2400 rpm |
| Speed Control |
stepless |
| Stirring Element Fastening |
chuck |
| Chuck Range Min. Diameter |
0.5 mm |
| Chuck Range Max. Diameter |
10 mm |
| Hollow Shaft Inner Diameter |
10.5 mm |
| Hollow Shaft (Push-Through When Stopped) |
yes |
| Fastening on Stand |
extension arm |
| Extension Arm Diameter |
13 mm |
| Extension Arm Length |
160 mm |
| Nominal Torque |
1.5 Nm |
| Dimensions (W x H x D) |
88 x 294 x 212 mm |
| Weight |
3.1 kg |
| Permissible Ambient Temperature |
5 - 40 °C |
| Permissible Relative Humidity |
80% |
| Protection Class according to DIN EN 60529 |
IP 20 |
| Voltage |
220 - 240 / 100 - 115 V |
| Frequency |
50/60 Hz |
| Power Input |
72 W |
