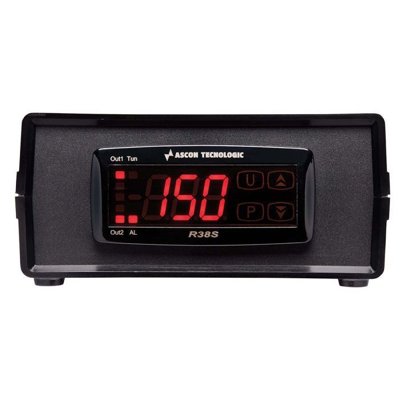

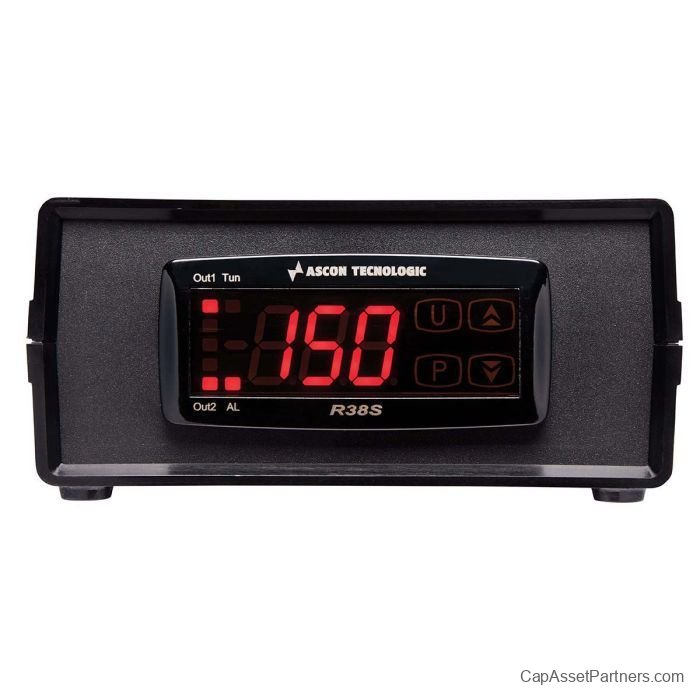

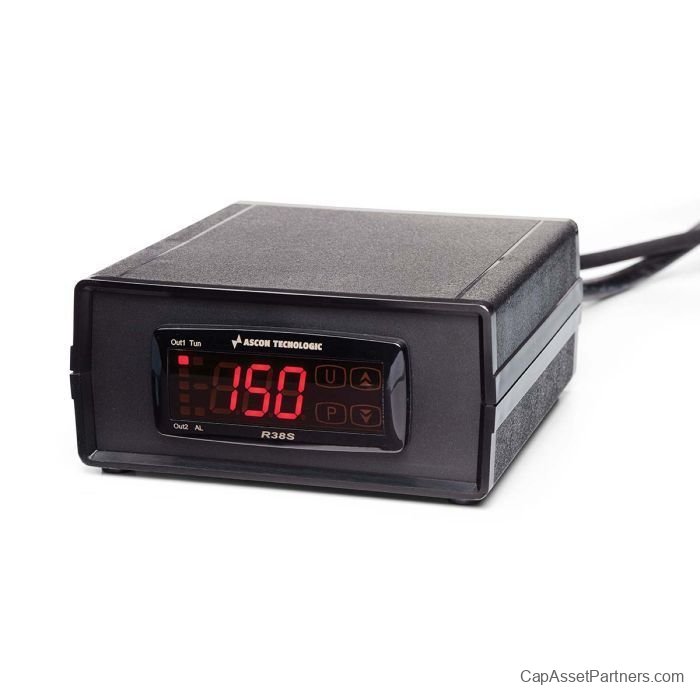

SDCE Digital Benchtop Temperature Controllers

The SDCE Digital Benchtop Temperature Controllers are the ideal solution for precise and efficient temperature control across a variety of heaters and surface heating applications. Designed for versatility, these controllers cater to various indoor environments, providing reliable automatic temperature regulation for your specific needs.

Key Features

• Intuitive Touch-Screen Operation: Effortlessly navigate settings and temperature adjustment with a responsive touch interface.
• Dual Temperature Display: Read temperature in both Fahrenheit (°F) and Celsius (°C) based on your preference.
• Factory-Wired Temperature Sensor: Included with the controller for seamless integration out of the box.
• Plug-and-Play Design: The benchtop configuration allows for easy setup and minimal installation requirements.
• Power Specifications: Available in 120 VAC (100 to 125 VAC) and 230 VAC (100 to 240 VAC) models, catering to global electrical standards.
• Maximum Amp Load: Capable of handling up to 8 amps at both 120/240 VAC, ensuring reliable performance.
• Comprehensive Temperature Control Range:
  • Type-J model: -40°F to 698°F (-40°C to 370°C)
  • Type-K model: -40°F to 899°F (-40°C to 482°C)
  • PT100-RTD model: -58°F to 842°F (-50°C to 450°C)
• Adjustable Hysteresis: Customize your temperature control settings with hysteresis adjustable from 1° to 99° in either Fahrenheit or Celsius.
• Programmable Alarms: Features audible alarms for high or low temperature thresholds, ensuring immediate notification for out-of-range conditions.
• Sensor Input: Comes with a 5 ft (1.5 m) Type-J or Type-K thermocouple or PT100-RTD, factory installed for your convenience.
• Output Power Connections:

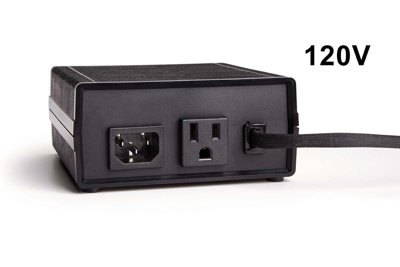

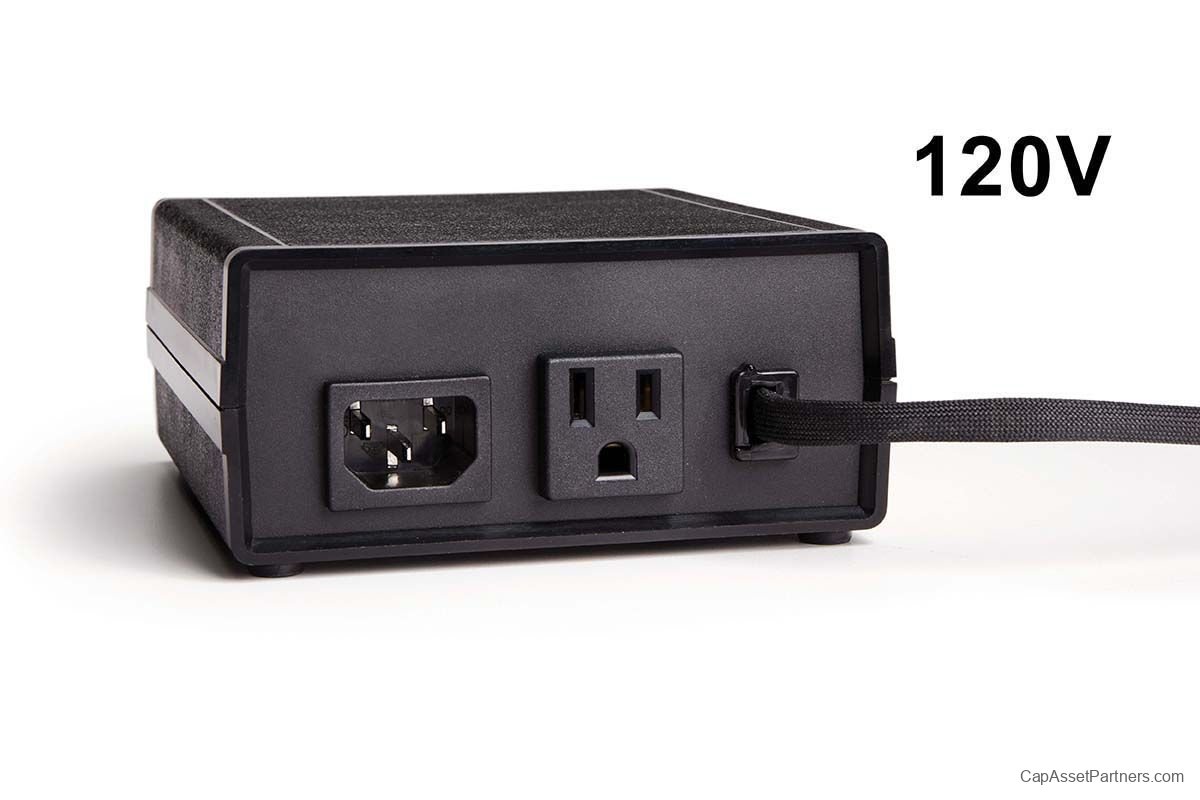

  • 120 VAC model uses a NEMA 5-15R receptacle.

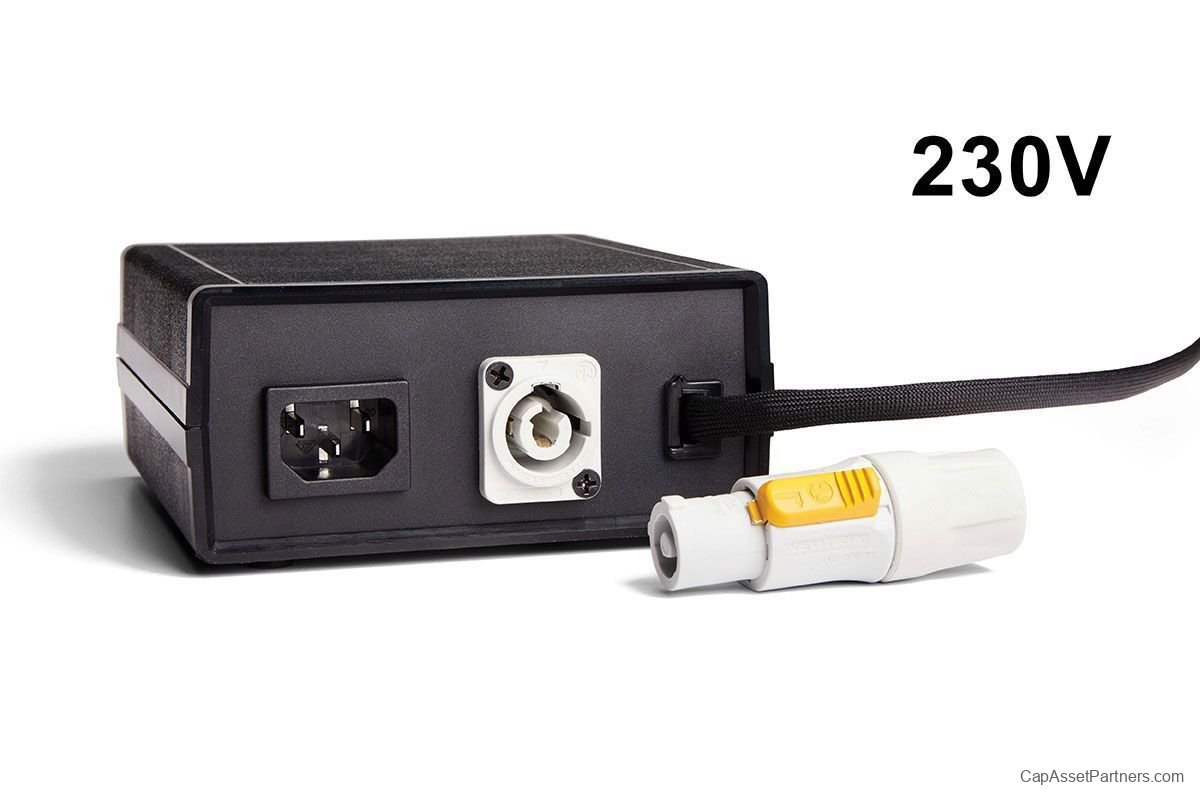

  • 230 VAC model features a Neutrik receptacle with a mating plug (PN: 41329-03).

Environmental Exposures

• Operating Temperature Range: 32°F to 100°F (0°C to 38°C)
• Storage Temperature Range: -4°F to 158°F (-20°C to 70°C)
• Operating Humidity: Relative humidity less than 95% non-condensing, ensuring reliable operation under varying conditions.
